Though I've only shaped a few boards here and there, I've been doing a lot thinking over the last year or so about how to design flex into boards... usually to then collaborate on the ideas with Copper Dove when he shapes me a Nine Lights board.
.
One of the most exciting things I've seen on my quest for flex was the photo of Michael Mackie's Demetri Milovich/Winterstick inspired flex tail fish in Andrew Kidman's book, ETHER, that I got a copy of last January. Below is a pic of one such Mackie fish (ripped from Young Man Grand).
.
.
Going off of Mackie inspiration, I recently had the thought: Rather than elongating the swallow tail pins for flex, why not totally cut out the stringer from the normal tail portion of the board? Thus creating two separate, independently flexing halves that can be stood on by the rear foot simultaneously. When I drew it out in front of a few friends, the term "Camel Toe" couldn't help but to be mentioned— was a good laugh.

.
One can come up with plenty of reasons why this might not work. The first I thought of is, if too much water channels up through and gets "caught" in the tail cleft it might cause drag. But I'm hoping that at speed the water will be sheeting off and past the cleft's bottom edge more than it will be collecting in the cleft. Obviously, structural strength, or lack there off might prove to be an issue too. The worst that can happen is it ends up riding like crap! Or I snap it at the tail.
.
Over the last week I've had a chance to borrow the Dove's shaping bay and decided to take a crack at shaping the "Camel Toe" board myself out of an EPS blank that's been sitting in my garage for a year. I decided to incorporate the C.T. into a shape influenced by the fishes and displacement hulls I've been riding, plus a magic session I had on a 4'11" Casper related board called the "White Pony" that Richard Kenvin brought down to the last Cardiff AB3. Pic of the White Pony below, cropped and enlarged from a photo by Maggie Marsek.
.
.
Note: With much respect to R.K., though this board was not an attempt to "copy" the White Pony, I'm sure I would have shaped certain elements of it differently if I hadn't been lucky enough to experience the W.P.— If anyone reading this likes the idea of doing cutbacks on a board that makes you feel like you're riding on a fast moving cloud that turns on a dime, then I highly suggest you contact the Swift Movement. 619/696-0677.
.

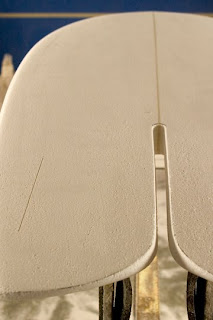

The blend of influences resulted in a bit of a mutant: 5'0" tall, pulled in nose with extreme belly, wide mid section and tail (though not as wide as the W.P.), bladed rails in the nose section that blend into full, tucked rails in the mid section, and the C.T. tail that will get glass on single foil twin fins.
.
To keep my toes from getting injured in the cleft, I'll probably cover the length of the deck side of the cleft with a thin, cut out strip of traction pad. If the C.T. tail proves to work, then I'll figure out something more aesthetically pleasing, 'til then... little strip of trac-pad it is.
.


.
Amongst other minor irregularities, I pulled a few chunks of foam out of the rail foil of the nose... blading out EPS takes a certain finesse I was lacking today. Oh well... Fuck It, Glass it, Ride It!
.


.
The C.T. tail is Also Known As the... Cleft Tail, Tweezer Tail, Deer Hoof, Banana Split, Parallel-O-Tail, Pincher Bug, Plumber's Crack (via Lawless), Tulip Tail (via Twinfin), Swedish Coin Slot (via Parallel Universe), Mud Flaps (if it ends up it's too flexy and bogs), and Double Trouble (If it doesn't work at all)... I'll post feedback after I ride it.
.
Note: I'm sure other people have probably made tails like this too. If anyone has any feedback on something like this tail, and you are willing to share, please do.
.
.
